Aten VW1608 Modular Video Wall Processor

A 4U modular video wall processor with support for up to 16 input sources and 8 displays while featuring True 4K performance, flexible windowing technology, and enterprise-grade reliability, empowering LED video walls in space-constrained control rooms, corporate war rooms, energy centers, or any small-to-medium sized mission-critical environment.

Modular Design with Customizable I/O configurations

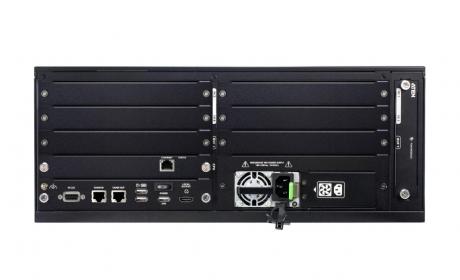

Purpose-built for 24/7 mission-critical operations, the modularly designed VW1608 contains 4 input board slots, 2 output board slots, and 1 CPU board slot to support up to 16 input sources and 8 displays. The ample amount of I/O board slots enable the customization of I/O combination to tailor it to any specific application. Its expansion capability also allows for decoding of multiple H.265 / H.264 streams at True 4K simultaneously via VW754 4-Channel 4K H.265 IP Stream Decoder Input Card for surveillance scenarios, improving situational awareness and decision-making.

Precision-Driven Visual Performance

Thanks to VW1608’s FPGA architecture, it supports resolutions up to True 4K, near-zero-second seamless source switching, and outputs without delay. The built-in scaler allows for mix-and-match of displays of different resolutions and upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens. Besides, FrameSync technology ensures that all output signals remain synchronized to prevent image tearing and frame mismatch, providing seamless playback across multiple displays.

Optimum Component Redundancy, Optimized Serviceability

To keep operations running when every second counts, the VW1608 boasts optimum component redundancy via a hot-standby CPU control board, dual redundant power boards, hot-swappable I/O boards as well as a fan module, reducing downtime for 24/7 operation in critical spaces.

Daisy-Chainable for Backup and Expansion Purposes

An extra level of reliability is added with it being cascadable for backup / expansion purposes. The Backup Mode enables real-time replication of the system settings and configurations across two VW1608s. Whenever the primary unit malfunctions, the backup unit automatically takes control of video wall outputs to ensure uninterrupted display. As for the Expansion Mode, up to three VW1608s can be daisy-chained together to run as a unified system to drive a larger video wall of up to 24 displays while allowing for centralized control by the primary unit, synchronized video output clocking across all units, and consistent, frame-accurate playback without tearing or drift.

Advanced Windowing Technology

Window management from cropping, overlapping, cross-screen, picture-by-picture, picture-in-picture, to bezel compensation, and more is made easy with the powerful video wall engine. Plus, the VW1608 is able to output in real-time in any size based on the correct aspect ratio. Customizable logos / color schemes / calendar / clock / scrolling texts can be added for a tailored view for every piece of crucial information, meeting the specific needs in every mission-critical settings effectively.

Configure and Control via Multiple Methods Locally or from Afar

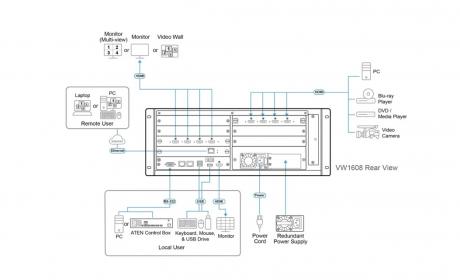

The VW1608 supports multiple control and monitor methods, including local HDMI output, RS‑232, Ethernet, front panel buttons, web GUI, Telnet, and SSH, to overcome geographical limitations.
